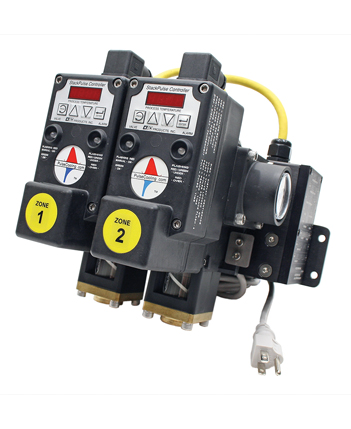

PULSECOOLING STACKPULSE CONTROLLER

Model: SPC

Low-Cost, High-Performance Mold Cooling. “Plug and Play” Controller includes the settings display, keypad, and fast-responding diaphragm valve all in one package. Up to 6 Zones Cooling at temperatures up to 160˚F.

Application: For high performance molds that require high cooling.

• Typically Machine Mounted
• Temperature range: 32°F to 160°F
• Voltage: 120VAC / 240 VAC or 24 Volts AC/DC

• One sensor feeds the temperature information for each cycle
• Each valve will pulse cool independently
• each flow indicator turbine will show the flow through each circuit
• Start Up: Adjust Set Point
• Upper / Lower Alarm
• Turn ON Water Supply/ Return
