PULSECOOLING SENSOR SELECTION
ARMORED SPRING PROBES
1. AMORED MINI PROBE 1/8", 1/8" x .5" LONG TIP
AMP-2-20-XXX
Solid Model: AMP-2-20-XXX x_t
To make a 90° change in direction use Sensor Guide Insert SGI-6-875-1.5

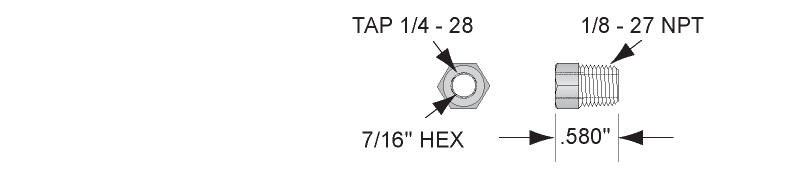

REDUCER FOR ARMORED MINI PROBE TO FIT 1/8" NPT
RB-02-28
1/8" Body Length

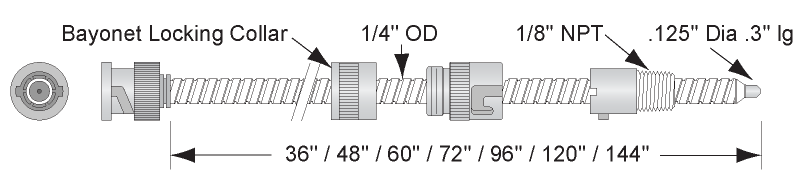

2. AMORED SPRING PROBE 1/4", 1/8" x .3" LONG TIP
ASP-4-20-XXX
ASP-4-20-XXX x_t, STP
To make a 90° change in direction use Sensor Guide Insert SGI-8-1500-2

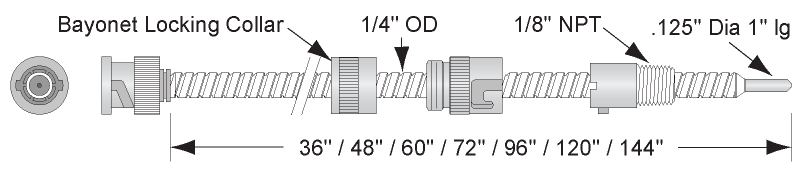

3. AMORED LONG PROBE 1/4", 1/8" x 1" LONG TIP
ALP-4-20-XXX
ALP-4-20-XXX x_t, STP
NOTE: Do not use with Sensor Guide Insert
ARMORED SPRING PROBES

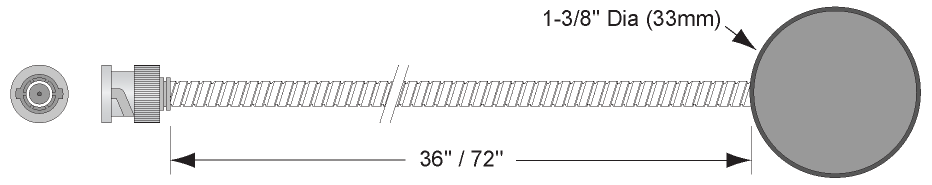

4. MAGNETIC DISC SENSOR
MDS-36-20-XX
Sensor Selection: PC-1000
CONNECTION CABLES

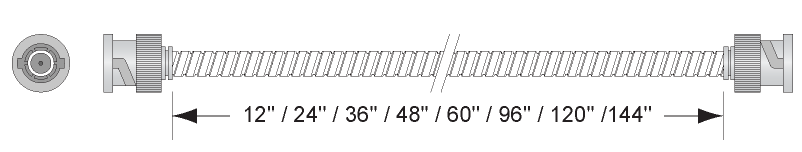

5. ARMORED CONNECTION CABLE
ACC-BB-XXX

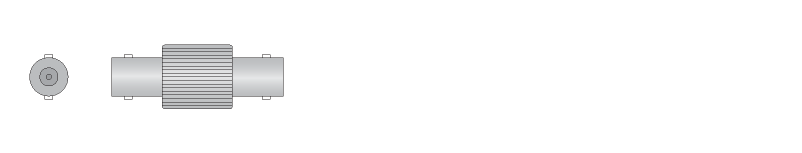

6. CONNECTION COUPLING
BNC-CC
SPRING BEAD PROBES

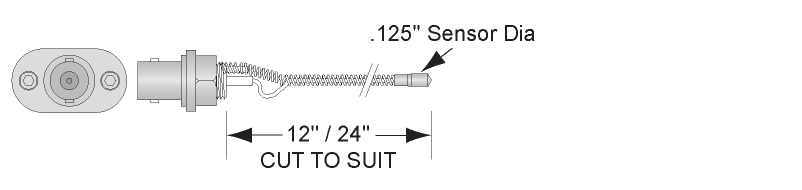

7. SPRING PLATE PROBE 1/8"
SPP-2-20-XX
Solid Model: SPP-2-20-XX x_t
Use BNC Connection Cable ACC-BB-XXX

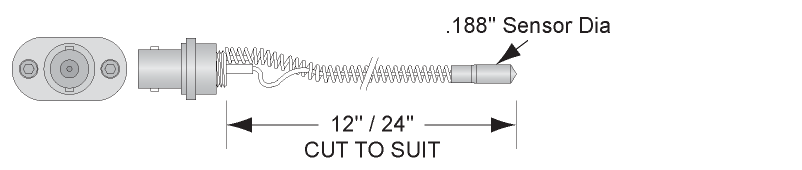

8. SPRING PLATE PROBE 3/16"
SPP-3-20-XX
Solid Model: SPP-3-20-XX x_t
Use BNC Connection Cable ACC-BB-XXX

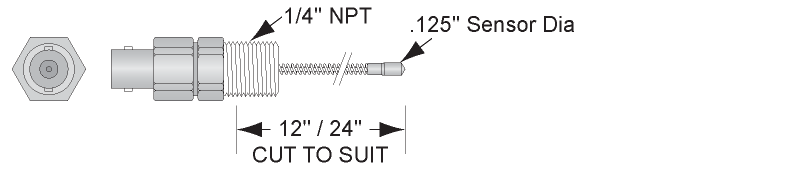

9. SPRING TAP PROBE 1/8" - 1/4" NPT
STP-2-20-XX
Solid Model: STP-2-20-XX x_t
Use BNC Connection Cable ACC-BB-XXX

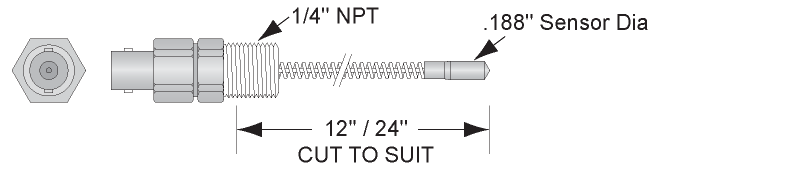

10. SPRING TAP PROBE 3/16" - 1/4" NPT
STP-3-20-XX
Solid Model: STP-3-20-XX x_t
Use BNC Connection Cable ACC-BB-XXX

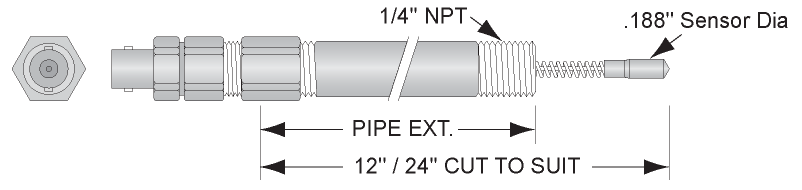

11. SPRING EXTENSION PROBE 3/16" - 1/4" NPT
SEP-3-PX-20-XX
Solid Model: SEP-3-PX-20-XX x_t
Use BNC Connection Cable ACC-BB-XXX
INTERNAL WET TEMPERATURE SENSORS

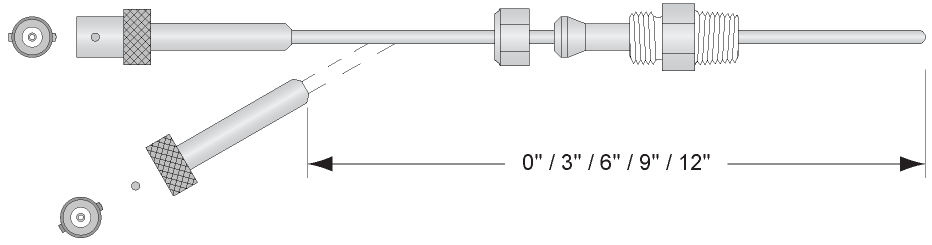

12. INTERNAL WET PROBE - STRAIGHT FLOW
IWS-X-20-XX
Installation Instruction: IWS-1800.pdf

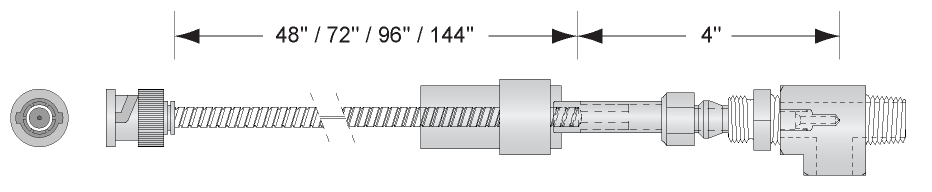

13. EXTERNAL WET LONG PROBE
EWL-8-20-04-XXX
Installation Instruction: IWS-1800.pdf

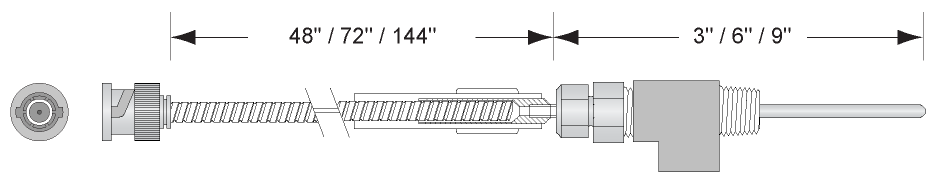

14. INTERNAL WET PROBE ASSEMBLY
IWA-8-20-06-XXX
Installation Instruction: IWS-1800.pdf

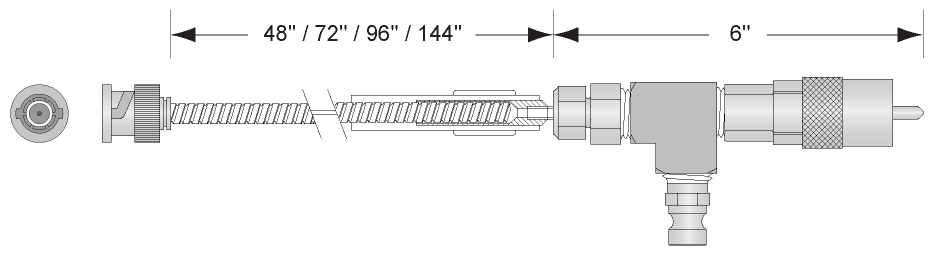

15. INTERNAL WET PROBE DISCONNECTABLE
IWD-X-20-XX-XXX
Installation Instruction: IWS-1800.pdf

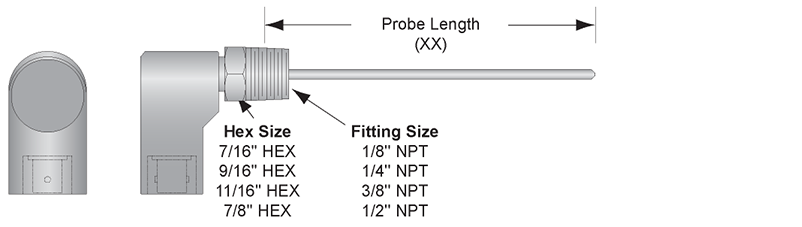

16. INTERNAL WET PROBE
IWP-X-20-XX
Installation Instruction: IWS-1800.pdf
17. INTERNAL WET PROBE - 90 DEGREE PORTS
IW9-X-20-XX
Installation Instruction: IWS-1800.pdf

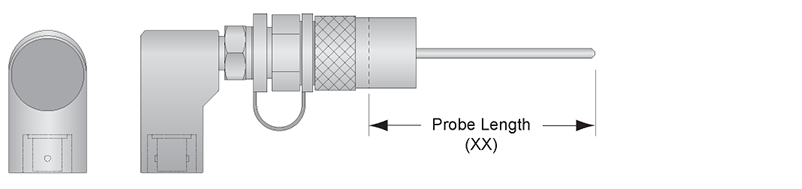

18. INTERNAL WET PROBE - REMOVABLE
IWR-X-20-XX
Installation Instruction: IWS-1800.pdf

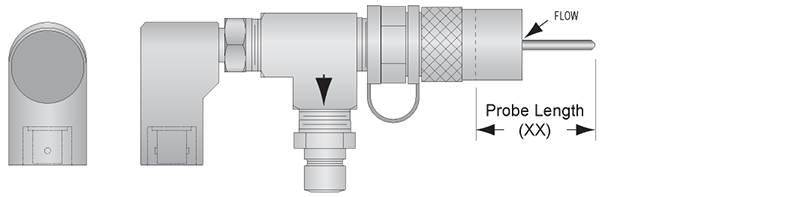

19. INTERNAL WET PROBE - QUICK CHANGE
IWQ-X-20-XX
Installation Instruction: IWS-1800.pdf
SENSOR GUIDE INSERTS
20. SENSOR GUIDE INSERT 3/16"
SGI-6-875-1.5
Installation Instruction:
PC-1960
(Used with Spring Bead Probes Only)

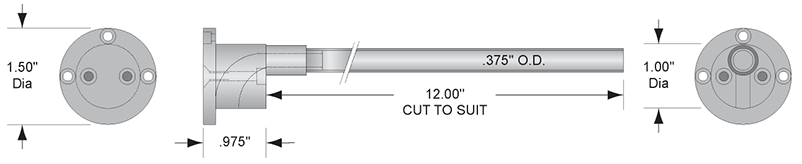

21. SENSOR GUIDE TUBE 3/16"
SGT-6-875-12
Installation Instruction:
PC-1962
(Used with Armored Spring Bead Probes Only)

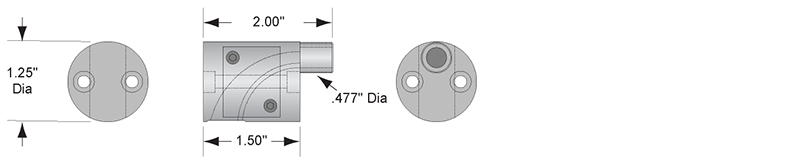

22. SENSOR GUIDE INSERT 1/4"
SGI-8-1500-2
Installation Instruction:
PC-1966
(Used with Armored Spring Probes Only)
23. SENSOR GUIDE TUBE 1/4"
SGT-8-1500-12
Installation Instruction:
PC-1968
(Used with Armored Spring Probes Only)

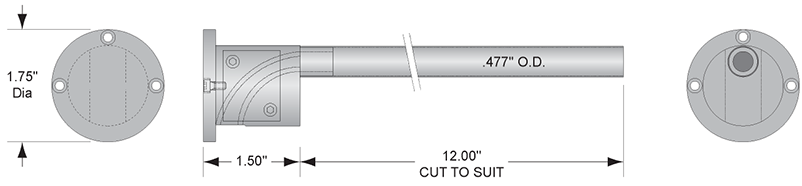

24. SENSOR GUIDE (FLAT) TUBE 1/4"
SGF-8-1500-12
Installation Instruction:
PC-1962
(Used with Armored Spring Probes Only)
