Efficient Cooling: All Inline manifolds are sized to meter the flow of each circuit. The inlet port size is the same as, or larger than, all outgoing ports combined. This maintains high flow and efficient cooling.
Practical Use: You can specify model size, number, and location of all outlet and inlet ports to achieve precision flow patterns for your particular applications.
Convenience, cost and increased production are the advantages of utilizing external Manifolds.

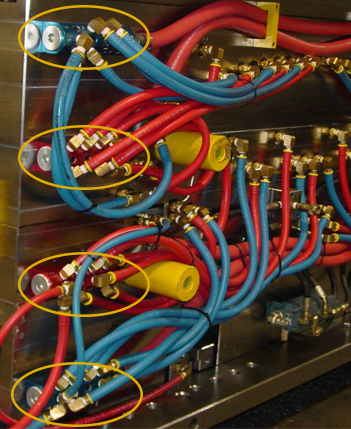

These rugged, low cost aluminum manifolds mount directly on the mold and are connected to the water lines with quick disconnect fittings.

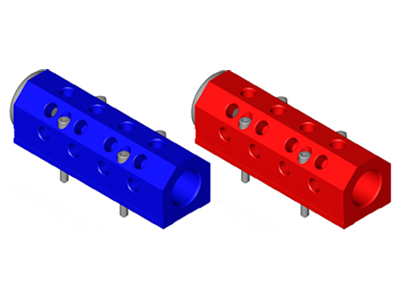

The original five sided anodized aluminum manifold allows pre-plumbing and pre-testing of all mold circuts. Excellent for fast mold changes.

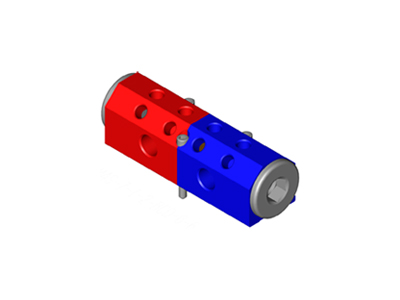

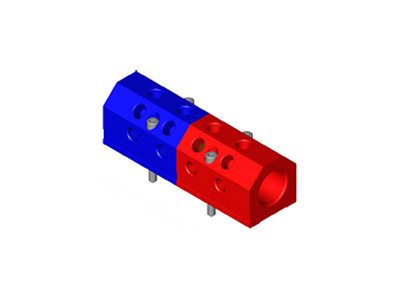

MORE INFOSame quality manifold as the Inline™ Manifold, with the supply and return contained in one manifold. Standard manifolds are anodized red and blue with divider.
MORE INFOSame quality manifold as the Inline™ and Inline™ divided manifold, with the supply ports on the side. This allows the use of the aluminum manifold where space is limited.

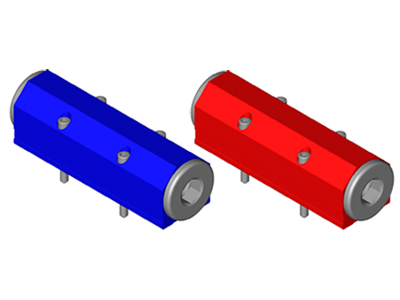

MORE INFOThe Bottomline™ manifold is the best choices when designing a new mold. The manifold mounts flush to the mold, eliminating the need for hose.

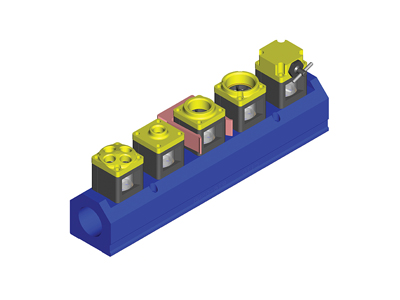

MORE INFOThe Rotoline™ manifold is our standard manifold with RotoFlow™ turbine indicators attached to the out ports to monitor flow.

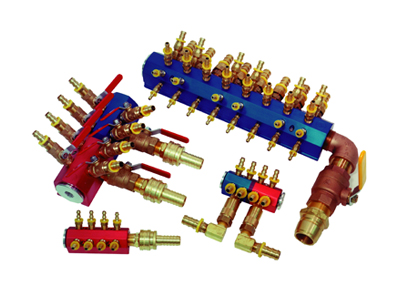

MORE INFOThe best way to use our Inline™ manifold is with quality brass fittings that we stock for all your plumbing needs. Supply and return hose is also available.
